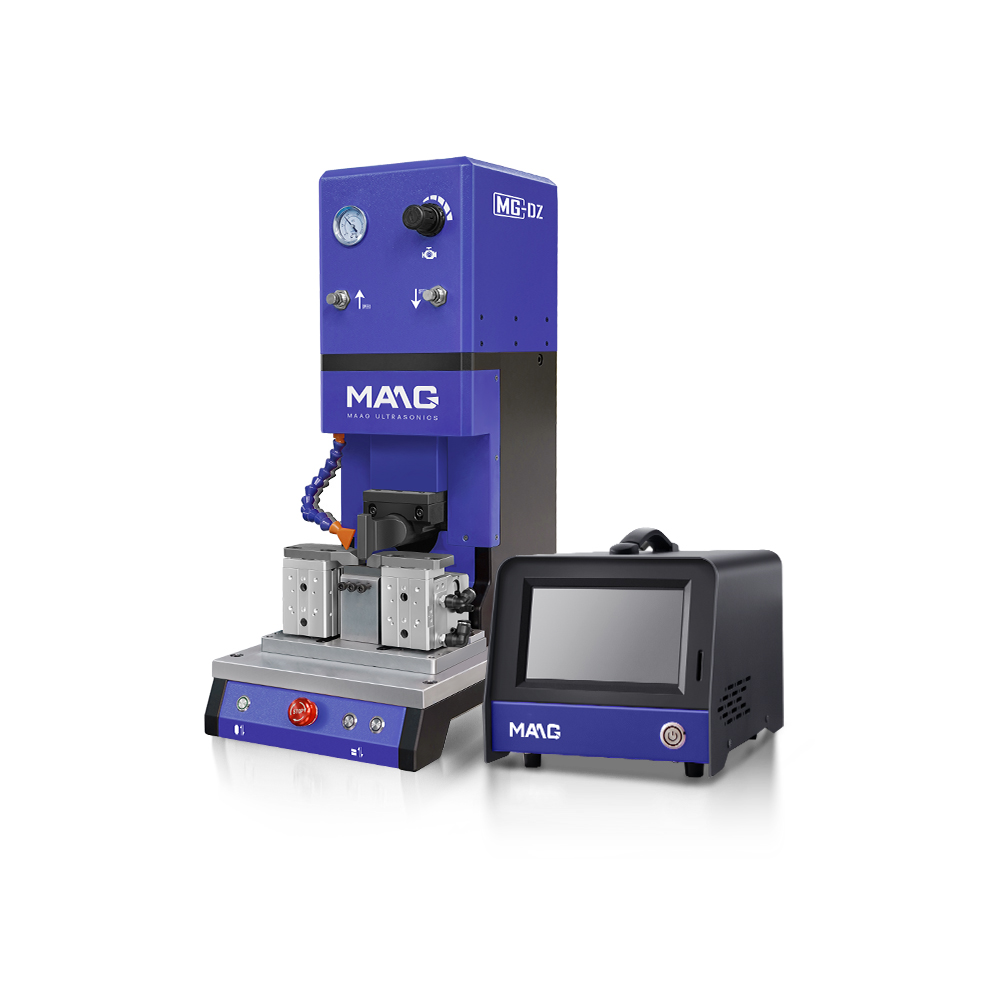

MG-DZ-Ultrasonic terminal welder

MG-DZ ultrasonic wire harness terminal welding machine is suitable for welding medium and large square copper and aluminum wire harness terminals. It is widely used in many fields such as automobiles, instruments and meters, communication equipment, and household appliances.

Good conductivity after welding, no change in resistance value

With multiple protection functions: automatic fault diagnosis

Microcomputer control ensures fast operation of welding process parameters and low subsequent maintenance costs.

Support free switching between 10 international mainstream languages

Get a Quote

Related Products

MG-DT-Ultrasonic terminal welder

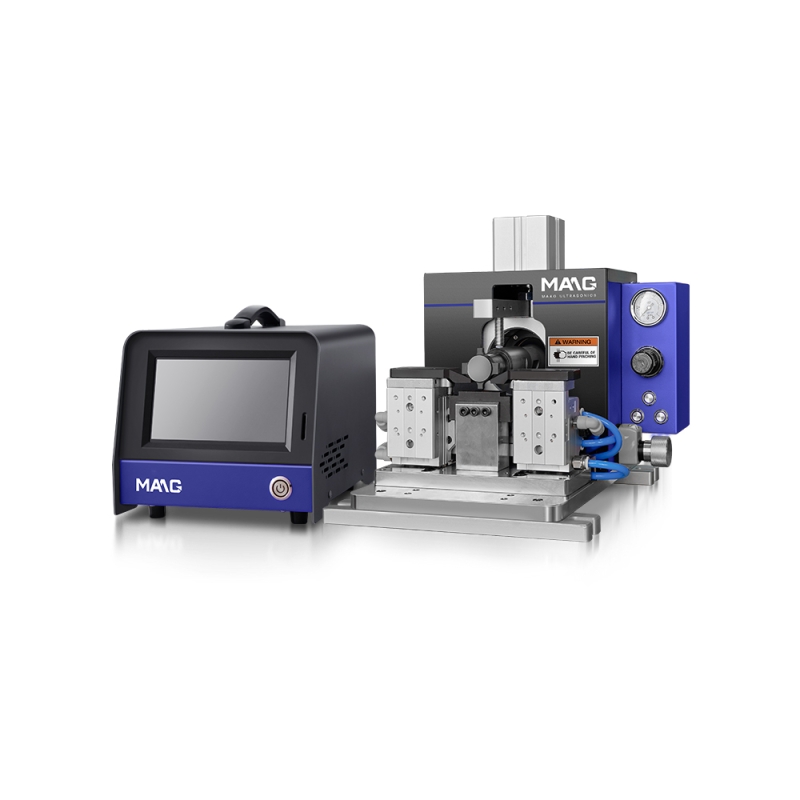

MG-DP-Ultrasonic terminal welder

Essential Details

Model	MG-DZ-Ultrasonic terminal welder
Welding capabilities	6-38mm²
Air source pressure	0.2-0.8Mpa adjustable
Welding energy	10~9999J
Rack size	300510623mm
Welding power	4000W
Working frequency	20KHZ±300Hz
Data storage	100 groups
Welding quality	Welding process monitoring
Application	Automotive connector harness, high voltage harness welding
Alarm function	Welding time/energy/pressure/amplitude power
